Laser Machines

The Aufero AL3 Laser Engraver Machine with a 20W output is a high-performance diode laser engraver designed for DIY projects, small businesses, and creators. It delivers accurate and powerful engraving and cutting on a wide variety of materials such as wood, metal, aluminum, glass, and leather. It is easy to assemble, safe to operate, and compatible with popular software.

Key Features
1. Powerful 20W Laser Module

Delivers up to 20000 milliwatts of laser power

Produces fine engraving details with a spot size of about 0.08 by 0.18 millimeters

Large working area of about 400 by 400 millimeters (15.7 by 15.7 inches)

2. High-Speed Performance

Engraving speeds up to 20000 millimeters per minute

Maintains consistent precision thanks to a stable mechanical structure

3. Multi-Material Support
Can engrave and cut:

Wood, leather, paper, black acrylic

Stainless steel, anodized aluminum, coated metal

Glass, stone, plastic, fabric, and more

4. Multiple Connectivity Options

Supports WiFi, USB, TF card, and app-based control

Compatible with LaserGRBL (free) and LightBurn (paid)

Works with Inspiraesth mobile app

5. Air Assist Included

Comes with a 40 to 50 liter per minute air pump

Helps reduce burn marks and improve cutting quality by blowing away smoke and debris

6. Built-In Safety Features

Safety features include:

Tilt and vibration detection

Active position protection

Eye protection shield

Over-current and voltage protection

7. Durable and Easy to Set Up

Made with aluminum alloy frame and ABS components

Simple assembly with just a few screws

Compact, stable, and ready to use within minutes

Technical Specifications
Specification Details
Laser Output 20W diode laser
Wavelength 455 nanometers
Engraving Area 400 by 400 mm
Maximum Speed 20000 mm per minute
Spot Size 0.08 by 0.18 mm
Focus Distance Around 50 mm
Compatible Formats JPG, PNG, BMP, SVG
Voltage Input 100 to 240V AC
Software Support LaserGRBL, LightBurn, Inspiraesth
Connectivity WiFi, USB, TF card
Build Materials Aluminum 6063, ABS, steel

Pros and Considerations
Pros:

High speed with excellent precision

Can engrave and cut a wide range of materials

Multiple ways to connect and control

Air assist system improves cutting quality

Strong safety measures for safe use

Things to Keep in Mind:

Eye protection is required during operation

Not suitable for cutting transparent acrylic or mirrors

Specification

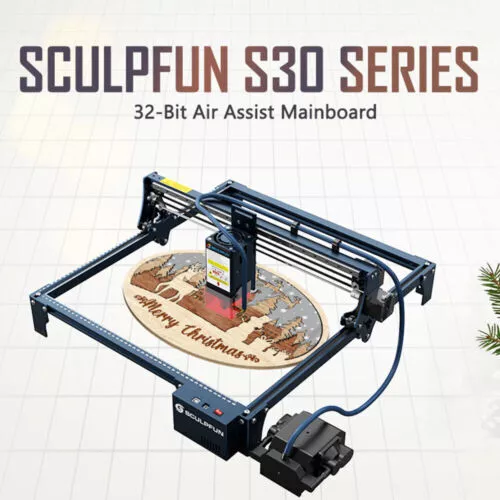

Product model SCULPFUN S30 Ultra-11W
Diode laser output power 11W (note that this is light energy not electrical energy)
Laser focus 0.08x0.08mm
Laser wavelength 455±5nm
Focusing method fixed focus column + sliding device
Laser protective cover Equipped with a detachable laser protective cover to protect the eyes. You can adjust it up and down, or remove the eye shield.
Engraving accuracy 0.005mm
Engraving area size standard version is 600x600mm
Machine electric power about 84W
Air pump type main board controlled air pump, voltage 24V, flow rate 30L/min
Air hose inner diameter 7.5mm
Motherboard 32-bit air-assisted motherboard, supports Bluetooth wireless connection.
Carving materials all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, stone, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramics, dark stone
Cutting materials all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, acrylic board, cardboard, non-woven fabric, bamboo chips, leather, some plastic boards, PCB boards
Operating software LightBurn (with air assist function M8), LaserGRBL, LightBurn, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other picture formats.
Data transmission method USB connection or Bluetooth wireless connection
Power input 24V 5A
Package weight 9.6kg
Packing size 865*247*235mm
Certification CE FCC RoHS FDA ICE certification
External Size 800*840mm (Include the Motherboard Shell and X-axis Gantry Beam) 750*800mm（Beam Frame）
Internal Size 700*760mm (Inner Frame Size); 600*600mm (Working Area)
Height 80mm（Beam Frame）, 220mm（Include X-axis Gantry Beam）

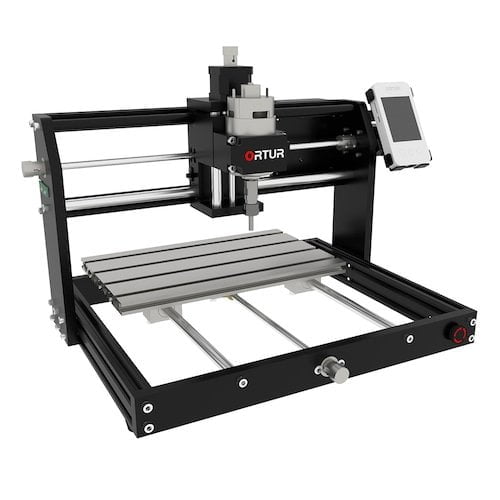

Ortur Aufero CNC Engraving Machine STM32 24V Industrial Grade Descriptions
Main Features
STM32 Motherboard + GRBL1.1, Industrial Design, Multi-material Cutting, All Metal Structure, 12mm Precision Polished Shaft, 997 DC Motor, Touch Screen Control, WiFi Control, Emergency Stop Safety Device, Modular Installation

Powerful Computing Capability & Deeply Optimized System
Ortur Aufero CNC engraver adopts STM32 motherboard, which has more powerful computing capability and faster data processing. It is combined with the deeply optimized GRBL1.1 firmware to support the expansion of more functions.
Support Candle control software
Support Windows, Linux and MAC IOS multiple system
RAM of Computer≥8GB Recommended

Industrial-grade Design, More Materials Can be Cut
Compared with most engravers on the market, the Ortur Aufero CNC engraver is applicable to a wider range of materials and applicable scenarios. It can engrave more harder and thicker materials. It can process and cut various materials such as solid wood and plastic that bring a better user experience.

Strong Power for Easy Cutting
The 997 DC motor has stronger power and faster speed, which is more conducive to engraving and cutting. The quality of the dedicated industrial-grade cutter is guaranteed that is not easy to break.

More Solid and Simple Appearance Design
Ortur Aufero CNC adopts high-strength metal structure, and the spindle lifting module is made of all aluminum CNC parts, which provides a solid platform for the engraver. The integrated wiring harness design makes the installation faster, the layout is more neat and beautiful, and it is not prone to faults caused by the wrong wiring.

More Features
12mm Precision Polished Shaft
Larger bearing capacity, higher accuracy, better stability and durability
Finished T8 Lead Screw
Higher accuracy and smoother operation for better engraving and cutting effect
XY Axis Belt Tensioning Device
XY axis screw belt adjustment device, more convenient to adjust the engraving position.
Aluminum Parts + Aluminum Profiles
The hardness of aluminum parts is higher than that of Bakelite, the machine is more stable and has longer service life.

Emergency Stop Safety Device to Provide Safety Guarantee
Ortur Aufero CNC engraver adds an emergency stop safety device to provide users with safety protection.

Multiple Control Methods
Ortur Aufero CNC engraver supports WiFi remote control, 3.2 inch touch screen and USB connection. Different from the common button screen design on the market, the 3.2-inch touch screen design is more user-friendly and convenient.

Modular Installation, Only Takes 20 Minutes
Modular design allow you convenient to install, and not easy to missing parts, very friendly to novices.

Specification
Motherboard: STM32 32-bit motherboard
Software: Candle
Operating system: Windows, Linux and MAC IOS
Engraving area: X300 x Y180 x Z50mm
