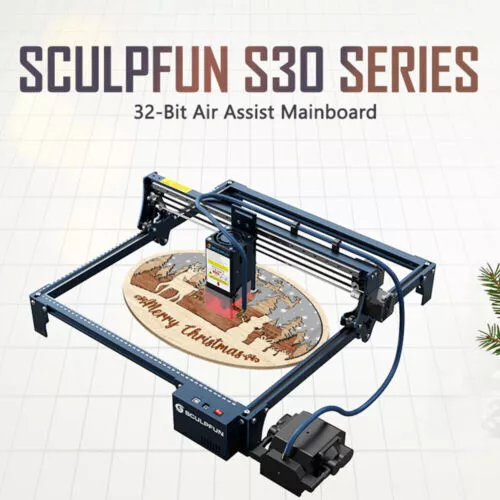

S30 ULTRA 11WATT SCULPFUN

https://www.shining-future.com/web/image/product.template/35/image_1920?unique=c753414

Specification

Product modelSCULPFUN S30 Ultra-11W
Diode laser output power11W (note that this is light energy not electrical energy)
Laser focus0.08x0.08mm
Laser wavelength455±5nm
Focusing methodfixed focus column + sliding device
Laser protective coverEquipped with a detachable laser protective cover to protect the eyes. You can adjust it up and down, or remove the eye shield.
Engraving accuracy0.005mm
Engraving area sizestandard version is 600x600mm
Machine electric powerabout 84W
Air pump typemain board controlled air pump, voltage 24V, flow rate 30L/min
Air hose inner diameter7.5mm
Motherboard32-bit air-assisted motherboard, supports Bluetooth wireless connection.
Carving materialsall kinds of wood (including walnut, cherry wood and other high-density wood), MDF, stone, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramics, dark stone
Cutting materialsall kinds of wood (including walnut, cherry wood and other high-density wood), MDF, acrylic board, cardboard, non-woven fabric, bamboo chips, leather, some plastic boards, PCB boards
Operating softwareLightBurn (with air assist function M8), LaserGRBL, LightBurn, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other picture formats.
Data transmission methodUSB connection or Bluetooth wireless connection
Power input24V 5A
Package weight9.6kg
Packing size865*247*235mm
CertificationCE FCC RoHS FDA ICE certification
External Size800*840mm (Include the Motherboard Shell and X-axis Gantry Beam) 750*800mm(Beam Frame)
Internal Size700*760mm (Inner Frame Size); 600*600mm (Working Area)
Height80mm(Beam Frame), 220mm(Include X-axis Gantry Beam)
